Jinko Solar Eagle G6B N-Type Bifacial — JKM580N-72HL4-BDV 580W Double Glass Module

The JKM580N-72HL4-BDV is part of Jinko’s cutting-edge Eagle G6B N-Type Bifacial series, representing one of the newest and most efficient offerings in the solar market. Engineered with state-of-the-art technology, this panel is designed for high performance and long-term dependability. At Emston Tech Inc, we provide this bifacial module to help our customers achieve maximum energy yields in residential, commercial, and utility-scale installations.

Next-Generation N-Type Bifacial Technology
This model utilizes 144 half-cut N-Type cells that are significantly smaller than conventional cells, leading to decreased power loss and enhanced low-light performance. While traditional panels only capture energy on the front side, the bifacial design of the JKM580N-72HL4-BDV allows it to absorb photons from both sides simultaneously. Depending on the installation environment, this technology can make the system up to 30% more efficient.

Superior Heat and PID Resistance
The JKM580N-72HL4-BDV is built to thrive in challenging climates. It features one of the lowest temperature coefficients available, losing just -0.29% of efficiency for every 1.8°F (1°C) above the standard 77°F (25°C). Additionally, Jinko has incorporated robust PID (Potential Induced Degradation) resistance and unique glass lamination to ensure the module remains efficient and durable throughout its entire lifespan.

Industry-Leading Reliability and Longevity
Emston Tech Inc stands by Jinko's commitment to quality. These panels are manufactured in highly automated facilities to eliminate human error and undergo rigorous reliability testing. The N-Type cells offer an exceptional degradation profile:

• First Year: Power output loss will not exceed 1%.
• Years 2–30: Average yearly power drop is no more than 0.40%.
• 30-Year Guarantee: The module retains more than 87.4% of its initial output after three decades.

Built for Extreme Weather Conditions
Constructed with a 1.18" anodized aluminum alloy frame and protective tempered glass, this module is built to withstand the foulest weather. It is specifically rated to handle significant mechanical loads:

• Front Load (Snow): Up to 5400 Pa
• Back Load (Wind): Up to 2400 Pa

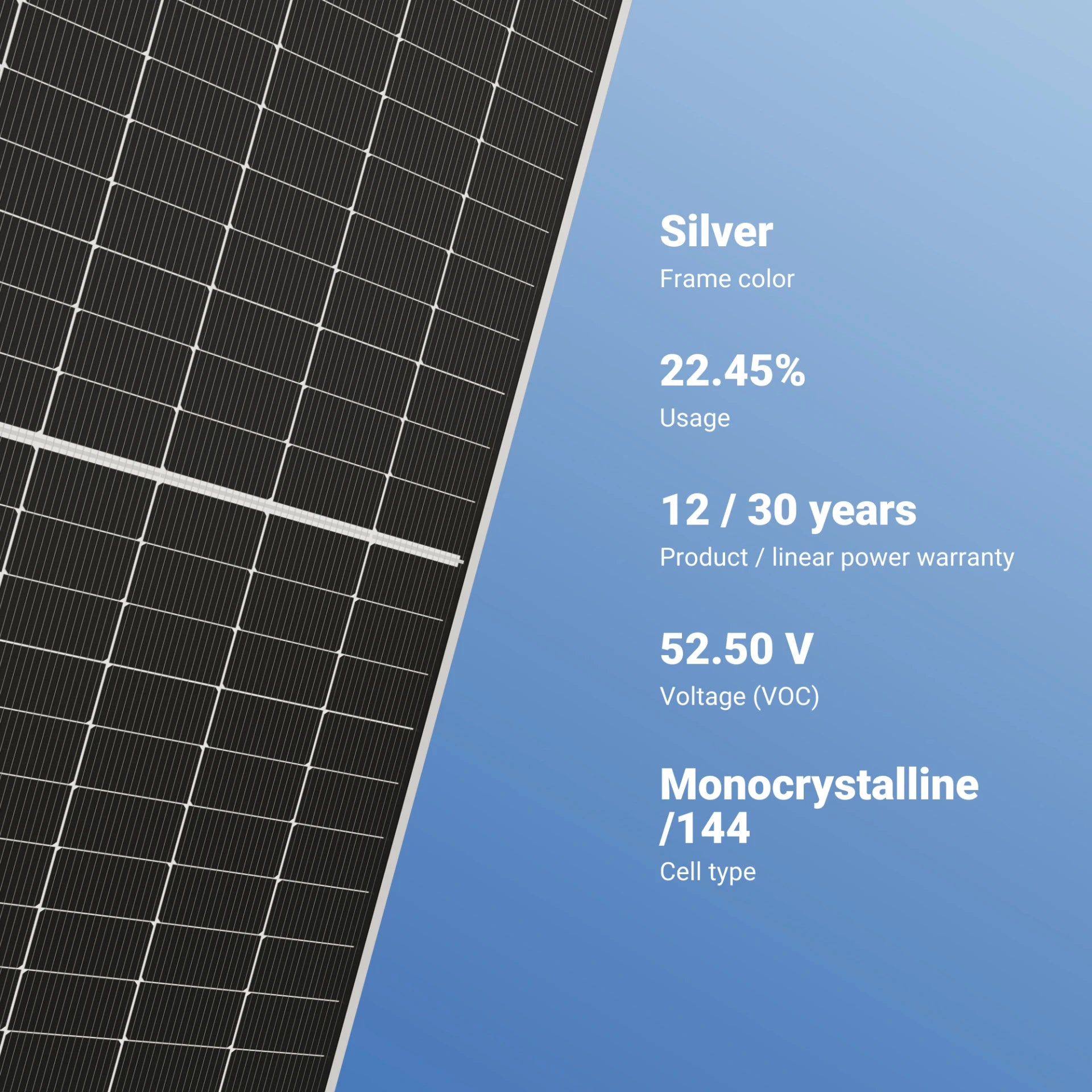

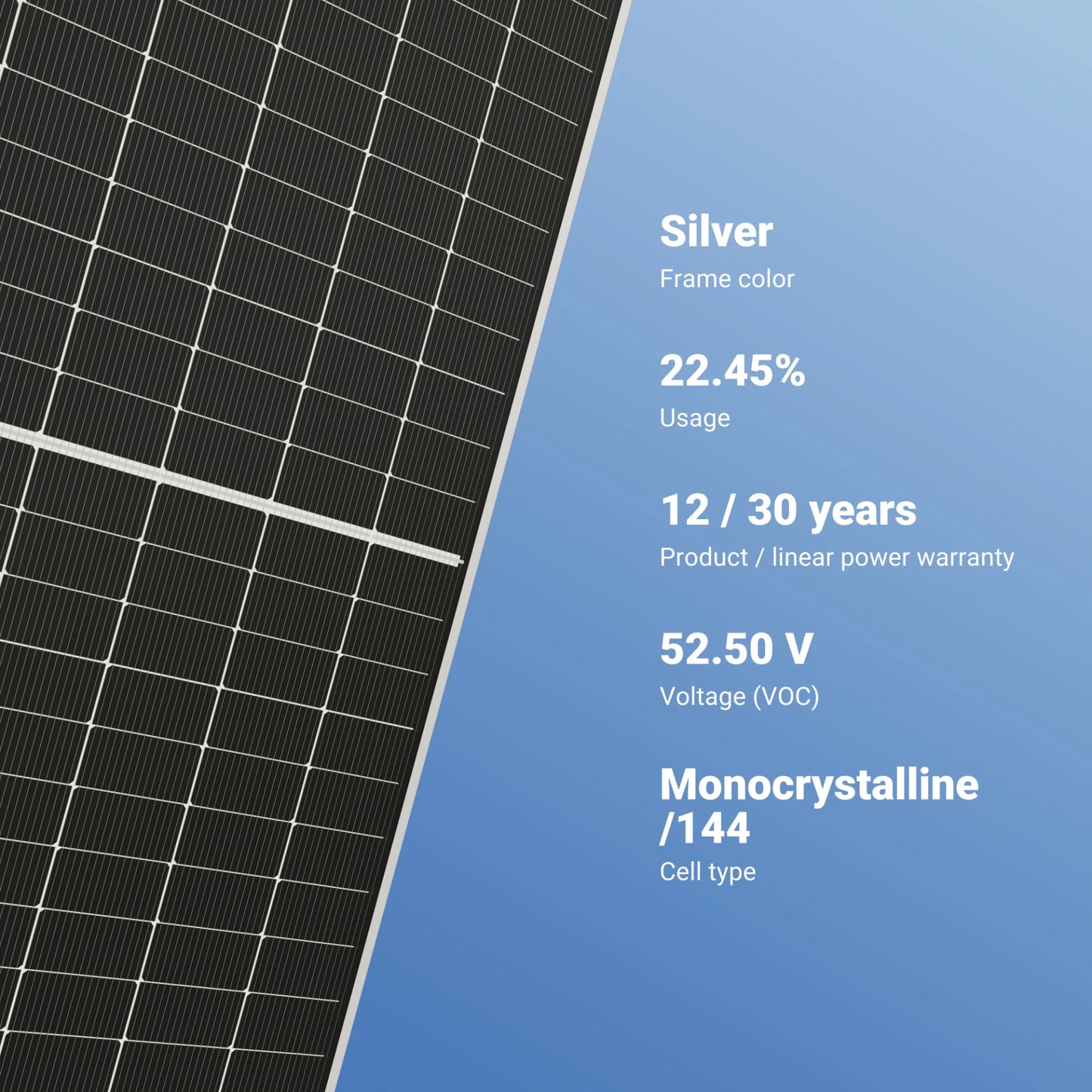

Technical Specifications:

• Power Output: 580 W
• Module Efficiency: 22.45%
• Cell Type: 144 Half-cut N-Type cells
• Maximum System Voltage: 1500 V DC
• Connectors: MC4 Compatible

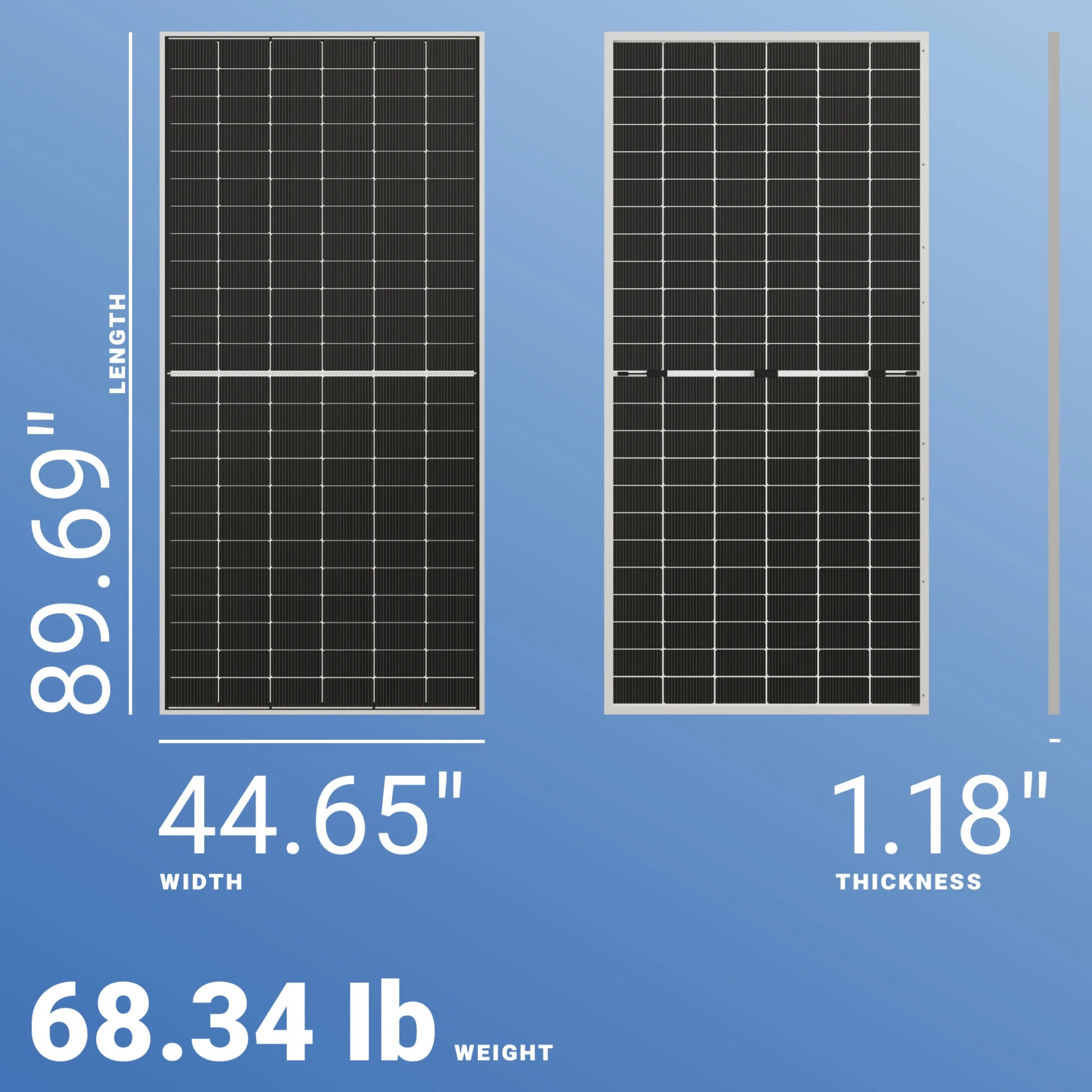

• Dimensions: 89.69" x 44.65" x 1.18"
• Weight: 68.34 lb

Warranty
The Jinko JKM580N-72HL4-BDV is backed by a 12-year product warranty and an industry-leading 30-year linear power warranty. Trust Emston Tech Inc to deliver the power and efficiency your next solar project demands.
